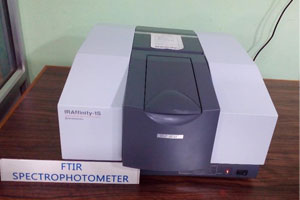

FOURIER TRANSFORM INFRARED SPECTROPHOTOMETER
SpecificationParameter
MODEL NUMBERShimadzu IR Affinity – 1S
INTERFEROMETER Michelson interferometer
OPTICAL SYSTEM Single beam
BEAM SPLITTER Ge Coated on KBr
LIGHT SOURCE Air Cooling type ceramic
DETECTOR DLATGS detector with temperature system
WAVE NUMBERRANGE 7800 – 350 Cm-1
ACCURANCY ± 0.125 Cm-1
S/N RATIO 30000:1
MIRRO Four steps (2.0, 2.8, 5.9 mm/sec)
DATA SAMPLING He-Ne Laser used
COMPARTMENT 2009(W) x 606 (D) x 273 (H) mm
WEIGHT 35 Kg
INSTALLATION SITE Temperature-15 to 30˚ C must be Controlled with an air-conditioner
HUMIDITY 70% (OR) Less
UTILITY AC 100 – 240 V

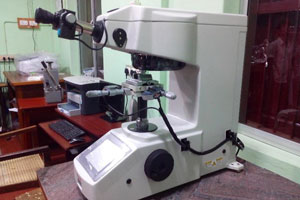

MICRO VICKERS HARDNESS TESTING MACHINE
SpecificationParameter
MODEL NUMBERHM -200A
LIGHT SOURCE White LED
EXTERNAL DIMENSIONS 296 (W) X 512 (D) X 780 (H) mm
MASS 38.5 Kg
POWER SPECIFICATION AC 100-240 V
TEST METHOD Test for Vickers hardness,Knoop hardness and fracture Toughness
TEST FORCE LOAD TIME1 To 99 sec., settable insteps of 1 sec.
DURATION TIME OF TEST FORCE 0 To 999 sec., settable in steps of 1 sec
TEST FORCE UNLOAD TIME1 To 99 sec., settable in steps of 1 sec
INDENTER SHAFTStandard 1 pc. (Up to 2 pcs Mountable)
OBJECTIVE LENS Magnification of 50 x for measurement working distance of 50x2.5 mm Up to four blocks mountable
SPECIMEN DIMENSION 133(H) X 160 (D) mm ±0.3nm (All Region)
MAXIMUM LOADING WEIGHT 14 Kg
OPERATION SECTIONTouch panel, 5.7 color graphic LCD display

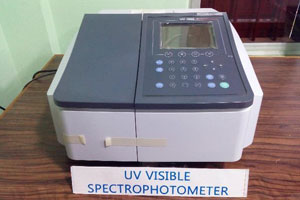

UV VISIBLE SPECTROPHOTOMETER
SpecificationParameter
MODEL NUMBERShimadzu Spectrophotometer UV- 1800
INSTRUMENT WEIGHT 15 Kg
POWER CONSUMPTION 140 vA
PHOTOMETRIC SYSTEM Double Beam Optics
LIGHT SOURCE 20 W Halogen Lamp, Deutrium Lamp Built in light source position automatic Adjustment mechanism.
MONOCHROMATOR Czerny-Turner Spectrometer Used blazed holographic grating
DETECTORSilicon Photodiode
SAMPLE COMPARTMENT Interior Dimension: 110 X 250 X 1159 (mm)(WxDxH)
DIMENSIONS450 X 490 X 270 (mm) (WxDxH)
OPERATING TEMPERATURE15˚C-35˚C
MEASUREMENT WAVELENGTH RANGE 190 nm – 1100nm
SPECTRAL BANDWIDTH (Resolution) ±0.1nm(65.55nmD2), ±0.3nm (All Region)
WAVELENGTH REPEATABILITY 0.1nm
WAVELENGTH SCANNING SPEED When Shifting Wavelength : Approx 6000 nm/min. When scanning Wavelength: Approx 3000 nm/min2nm/min
SCAN REPETITIONS 1 to 99
INSTRUMENTATION LAB REQUISITION FORM
Click Here for Requisition form download
BIOMASS GASIFIER

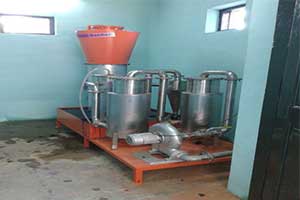

To explore renewable energy resources, the college has designed a 5KW biomass gasifier to generate electricity using a woody material Prosopis Juliflora which is available nearby areas. Biomass research is a dynamic research to the development, analysis and evaluation of bioenergy. Presently, the physics students are trained to operate the system. Initiatives are taken to utilize the power generated by the system. This is one of the major incubation centers for both basic and applied research. PEARL – A foundation for Educational Excellence Awards to higher education in India, honored the college by “Best Renewable Energy Implemented College” award.

President Thiru..S.Meenakshi Sundaram B.Sc., B.L., - Received the “Best Renewable Energy Implemented College award” for the year 2016 by PEARL.
